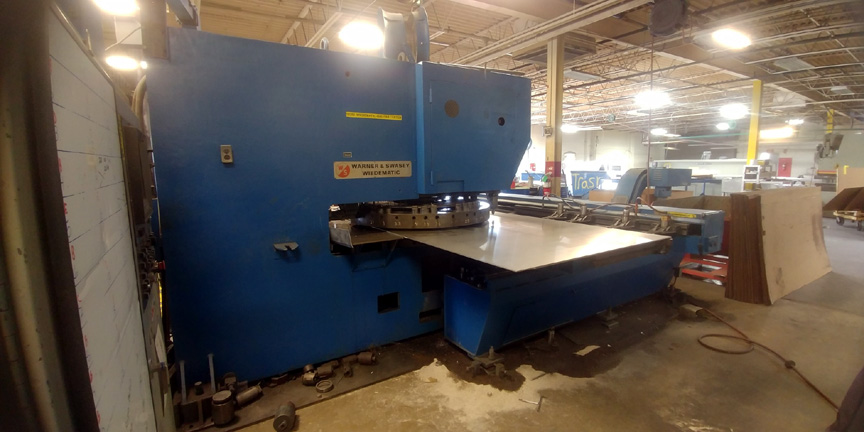

Wiedemann 45 Ton W4560, CNC Turret Punch
Specifications:
Tonnage:
Stroke:
Max. Sheet Thickness:
Max. Sheet Size:
Throat Depth
Table Travel:
Hit Rate
45 Tons
1-1/4"
3/8"
72" x 60" (w/o Repositioning), 144" x 60" (with 1 Reposition)
60"
1500 IPM
135 - 175 HPM on 1" Centers
Turret Configuration:
36 Stations
(18) "B" Range; (5) "C" Range;
(5) "D" Range; (3) "E/F"  Range;
(3) "G/H/I" Range (Up to 4-3/4" Dia.); (2) "K/L" Range (Up to 6" Dia.)
(1" Increment Movement)
Equipped With:
Fanuc Model OOP CNC Control W/CRT
Hydraulic Work Clamping
Hydraulic Clutch and Brake
Automatic Lubrication
15 HP Main Drive Motor
