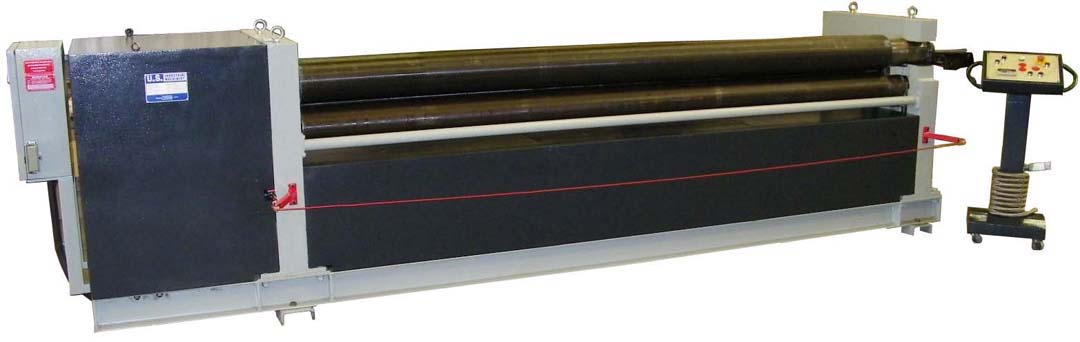

ONE (1) NEW U.S. INDUSTRIAL 10' x 1/4" INITIAL PINCH PLATE ROLL
Model Number: USR1025
ONE (1) NEW U.S. INDUSTRIAL 10' x 1/4" INITIAL PINCH PLATE ROLL
Model Number: USR1025
STANDARD EQUIPMENT: (All
of the following comes with the machine)
Powered Roll Adjustment and Manual Precision Pinch Roll
Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
| SPECIFICATIONS: | |
| Capacity: | 10‘ x 1/4" Mild Steel @ 65000 PSI |
| Pre-Bend Capacity: | 1/4" Mild Steel @ 65000 PSI |
| Top & Bottom Roll Diameter: | 7.4"/7.5" (ends/middle) |
| Bending Roll Diameter: | 6.67"/7.1" (ends/middle) |
| Speed: | 19 FPM |
| Main Drive Motor: | 5.5 HP Reduction Gear Drive |
| Adjustment Motor: | 3 HP |
| Machine Length: | 177" |
| Machine Width: | 54" |
| Machine Height: | 44" |
| NetWeight: | 9,250 lbs. |
| Voltage: | 220/440 Volts, 3 Phase |
*specifications are subject to change without notice
PRICE.....F.O.B. MEMPHIS....$38,490.00
AVAILABLE OPTIONS:
Hardened Rolls: $ 1,695.00
Cone Rolling Attachment: $ 995.00
LED ReadoutWith Memory: $1,995.00
Hydraulic Top Roll Swing-Out: $2,895.00
PRICE.....F.O.B. MEMPHIS....$46,070.00
