  • 9" x 49" table with 3 T-slots, 5/8", on 2.5" centers
    Table travel is 33". Leadscrew pitch is 5TPI with dials on each end graduated in .001".
  • Travel of crossfeed is 12" with .001" dial graduations
  • Knee travel is 15.74" with 10TPI leadscrew, .001" dial graduations
  • Ram allows for over 12" of travel, for variable throat depth
  • Conventional dovetail ways on X, Y and Z Axis…………. Double locks on all axis
  • Aged stressed castings, stress relieved for long life and accuracy, Meehanite type
  • Power quill feed allows for 0.0018, 0.003, 0.006 Inches of feed per revolution of spindle
  • Hardened and ground and precisely scraped work table, saddle and knee ways
  • Centralized one-shot lubrication pump lubricates all way surfaces and leadscrews
  • Backlash adjustment for leadscrews, Gib adjustments for ways

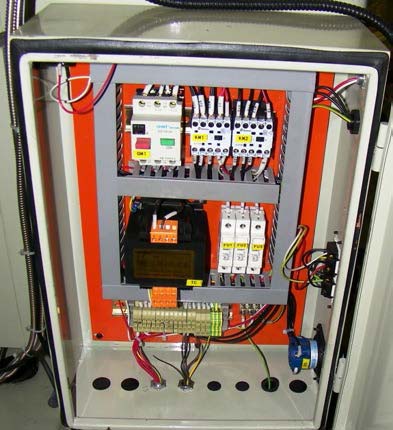

  • Electrical cabinet with internal transformer for 110V and 24V devices, circuit breaker protected,
    Low Voltage controls, 24 volt halogen machine light.
    Transformer also includes power supply for digital readout and power table feed.
  • Operator low voltage controls for coolant pump, machine light, main power with emergency stop button. Spindle off/forward/reverse switch.
  • Built in coolant tank base with coolant pump, pressure and return hose , nozzle and valve,
    Installed and ready to use. Base chip pan to help prevent coolant overflow.
  • Manual variable speed spindle drive, 3 Horsepower runs the spindle from 60 to 4200 RPM. Spindle speed dial on head shows
    RPM in direct drive and back gear. Spindle motor is finned for cooling.

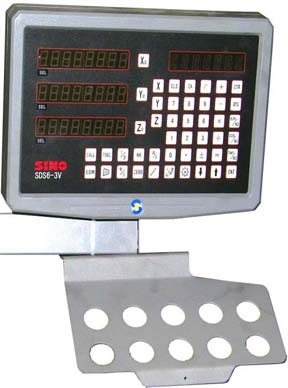

  • Sino three axis digital readout has 0.0002" resolution. Readout comes mounted to knee, table and cross and is ready to use.
    The readout is inch/metric switchable, with absolute incremental function. There is a calculator function, bolt hole pattern
    function, line pattern function, and arc calculate function. A comprehensive manual is included.
  • Power table feed is Align model AL500SP. Infinitely variable feed from .8 to 32 IPM with rapid button, on/off switch, and
    adjustable travel stops. This heavy duty power feed has 150 inch pounds of torque, with max to 650. Power table feed comes installed on machine, ready to use.
  • Toolbox and tools, manuals, electrical drawing, test certificate all included.
Working Surface 9" x 49"
Longitudinal Travel 29" with powerfeed
Cross Travel 11"
Knee Travel 15.74"
Ram Travel 12"
Head tilt, left to right 90 degrees left, 90 degrees right with degree ring scale
Head Tilt, front to back 45 degrees front, 45 degrees back with degree ring scale
Ram Circular Movement 360 Degree with degree ring scale
T-Slots 3 @2 1/2" Centers, 5/8" Ea.
Spindle Drive 3 HP
Spindle Range (Manual Vari-speed sheeve) 60-4200 Variable with Direct Drive and Back-geared
Spindle Type R-8
Quill Travel & Diameter 5" travel and 3 3/8" diameter
Power quill feed range, Inches per rev 0.0018", 0.003", 0.006"
Weight of Work Piece Max 500 lbs
Spindle Motor 3 HP, 208-240 volt or 440/460/480 volt,
3 phase spindle motor- standard
Electrics 208-240V or 440/460/480V, 3 phase – pick one
Machine, Net Weight 2,550 lbs


Standard Configuration of KIT Machine: (All items already installed on machine!)

Base Price of machine……..F. O. B. Memphis, TN
