ONE (1) NEW U.S. INDUSTRIAL 10’ X 5/8" HYDRAULIC SHEAR, Model Number: US10625

SPECIFICATIONS:
• Sheet Size: 126"
• Shearing Capacity: 5/8" Mild Steel @ 65,000 PSI
• Shear Angle: 1 Degree 30’
• No Load Strokes: 7
• Throat Depth: 5.5"
• Adjustment Range of Back Gauge: 0.75" - 36"
• Hydraulic Oil Capacity: 137 Gal.
• Main Motor: 30 HP
• Net Weight: 33,069 lbs.
• Dimensions (L x W x H): 161" x 88" x 84"

STANDARD EQUIPMENT: (All of the following comes with the machine)
• Squaring Arm • (3) Bolt on table segments
• High Carbon, High Chrome Shear Blades • Hold-downs faced w/anti-mar neoprene
• Ball Transfers on Each Table Segment • Swing Beam Design
• Manual Quick Change Blade Gap Adj. • Pressure Sensing Hold Downs
• Squaring Arm, 39.5" from blade to end • Electric Stroke Adjustment
• Stroke Counter • Operator Control Console
• Front-controlled Power Back Gauge • Shadow Lighting
• Blade Guard, Micro Switch Protected • Low Noise Gear Pump
• Hydraulic, Electrical Overload Protection • Support Arms Included
• Automatic Swing-up on Back Gauge

AVAILABLE OPTIONS:

• 3-Axis CNC Programmable Back Gauge $4,990.00
Touch-screen operated. Controls back gauge depth, blade gap and stroke length.
It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode.
• Pneumatic Sheet Support $5,990.00
• Material Support/Drop Chute $1,695.00
• 6-Foot Squaring Arm $2,495.00
• 8-Foot Squaring Arm $2,795.00
• 10-Foot Squaring Arm $2,995.00
• Training in Memphis No Charge
• Training at customer site, less than 300 miles from Memphis: $2,295.00
• Training at customer site, more than 300 miles from Memphis: $3,995.00

PRICE, F.O.B. MEMPHIS
$75,990.00
Front operated power Backgauge with digital readout Included
Squaring Arm - 3' Included
Support Arms, Ball Transfer Table Included
Quick blade gap adjustment Included

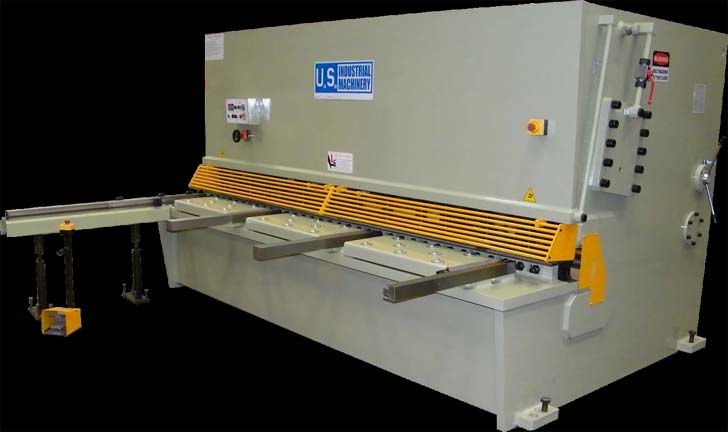

USI Hydraulic Shear.jpg (31766 bytes)
