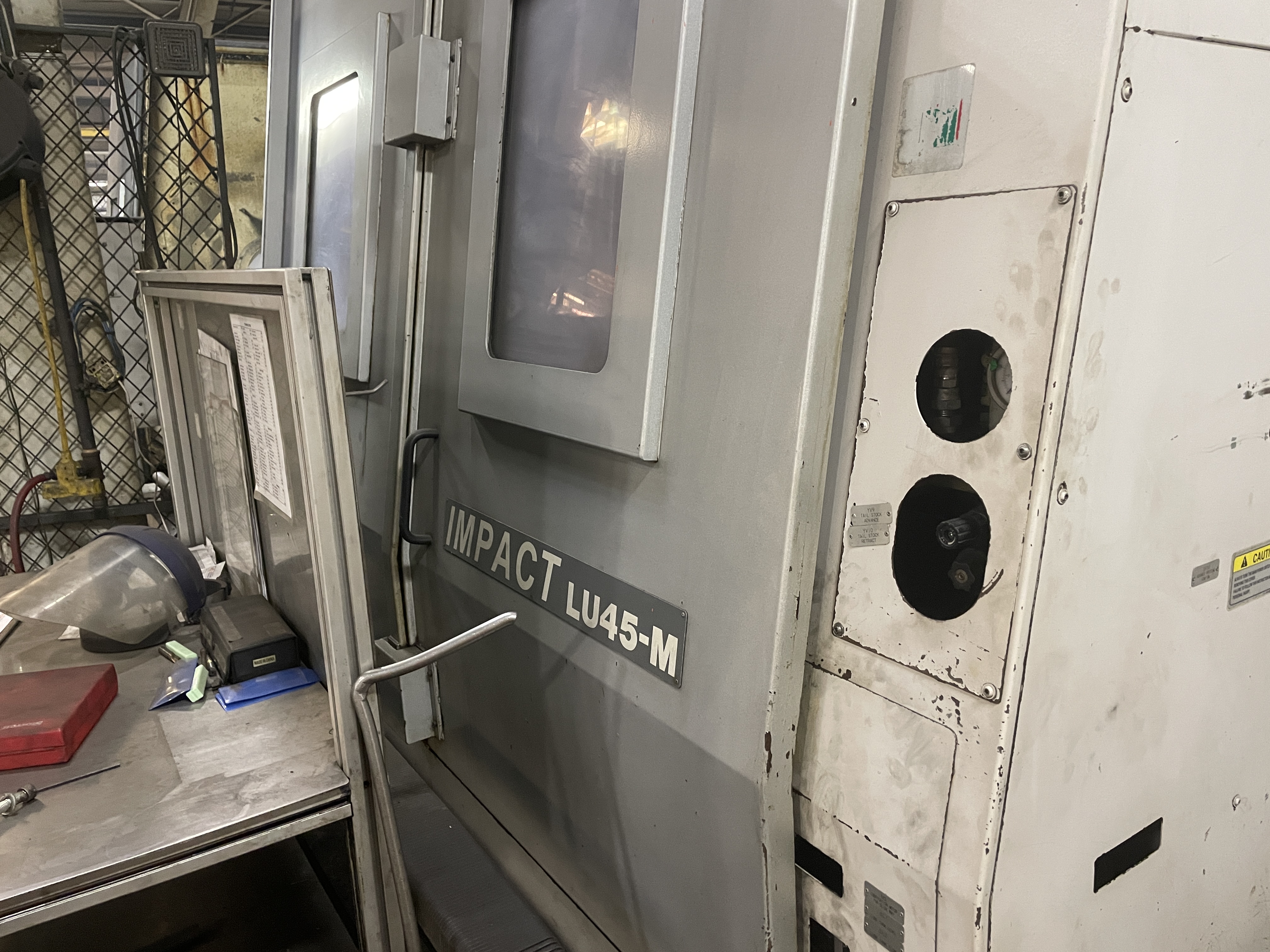

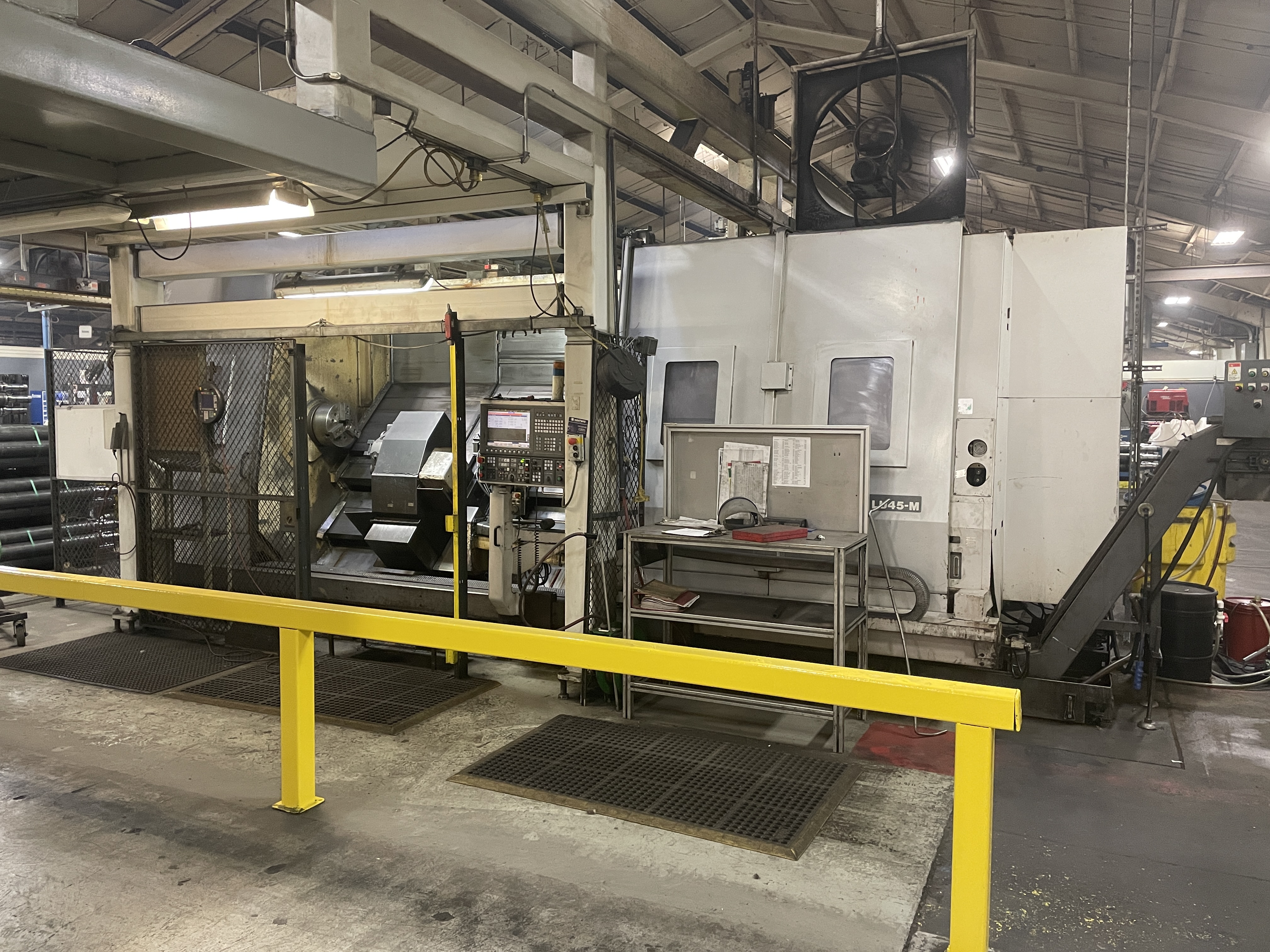

Okuma LU45-M 2-Saddle 4-Axis Live Tooling CNC Universal
Turning Center, OSP-U100L Controls, 10/8 pos Dual Turret, New 2001
Specifications:
Swing
Swing Over Saddle
Machining Distance Between Centers
Travel, Z axis Upper Turret
Travel, Z axis Lower Turret
Travel, X-axis Upper Turret
Travel, X-axis Lower Turret
Travel, C Axis
Rotary Tool
Control

Max Workpiece diameter
Spindle Speeds
Spindle Bore
Turret stations:
Spindle nose
Rapids,
Feed rates X-Z
Quill diameter
Quill Travel
Morse Taper
Main motor (Cont./30 Min)
Dimensions:
Approximate Weight:    		33"
22"
49.21"
42.91"
40.35"
17.32"
12.00"
360º
40 – 2000 RPM

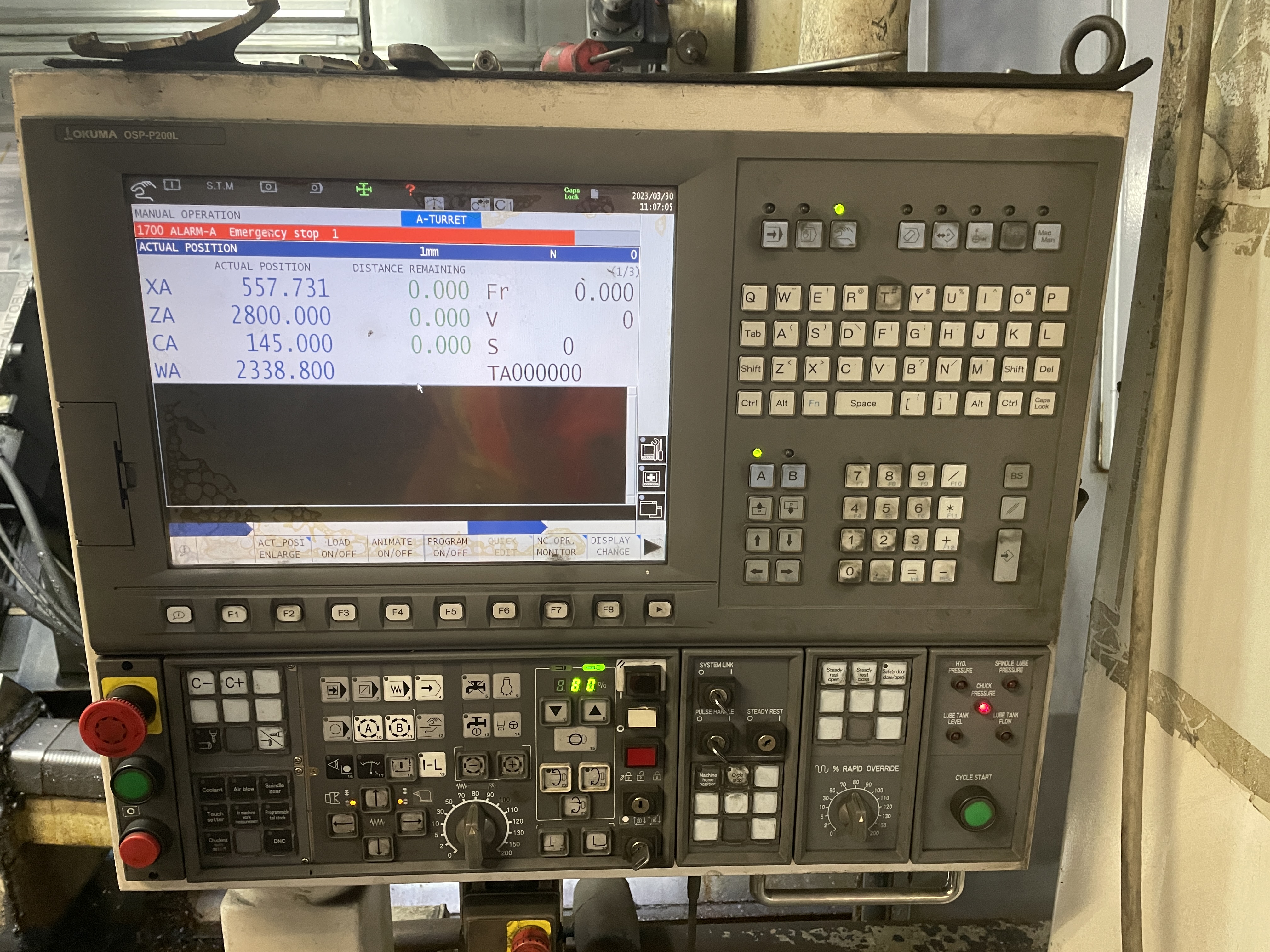

OSP-U100L Color Graphics with IGF Conversational Programing
XA/XB 23"/18”
12 - 2800 rpm
5.12”
10 upper / 8 lower Live Mill / Drilling
A2-11
Z/X 393/196 IPM
0.0001---40.0000 IPM
5.12"
6.69”
No. 5
60HP / 68 HP
187" x 112" X 118”H
29,700 Lbs.
Equipped With:

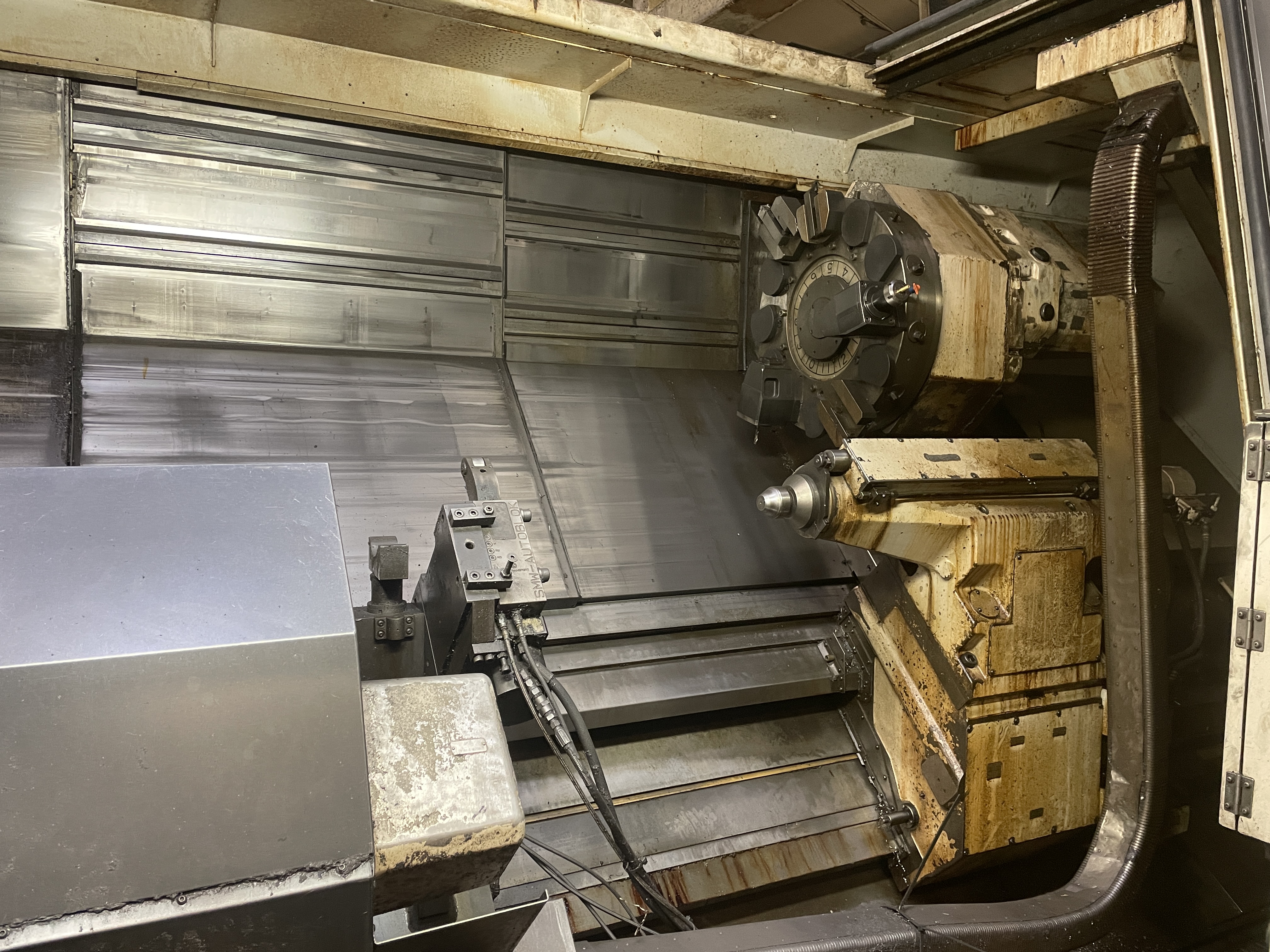

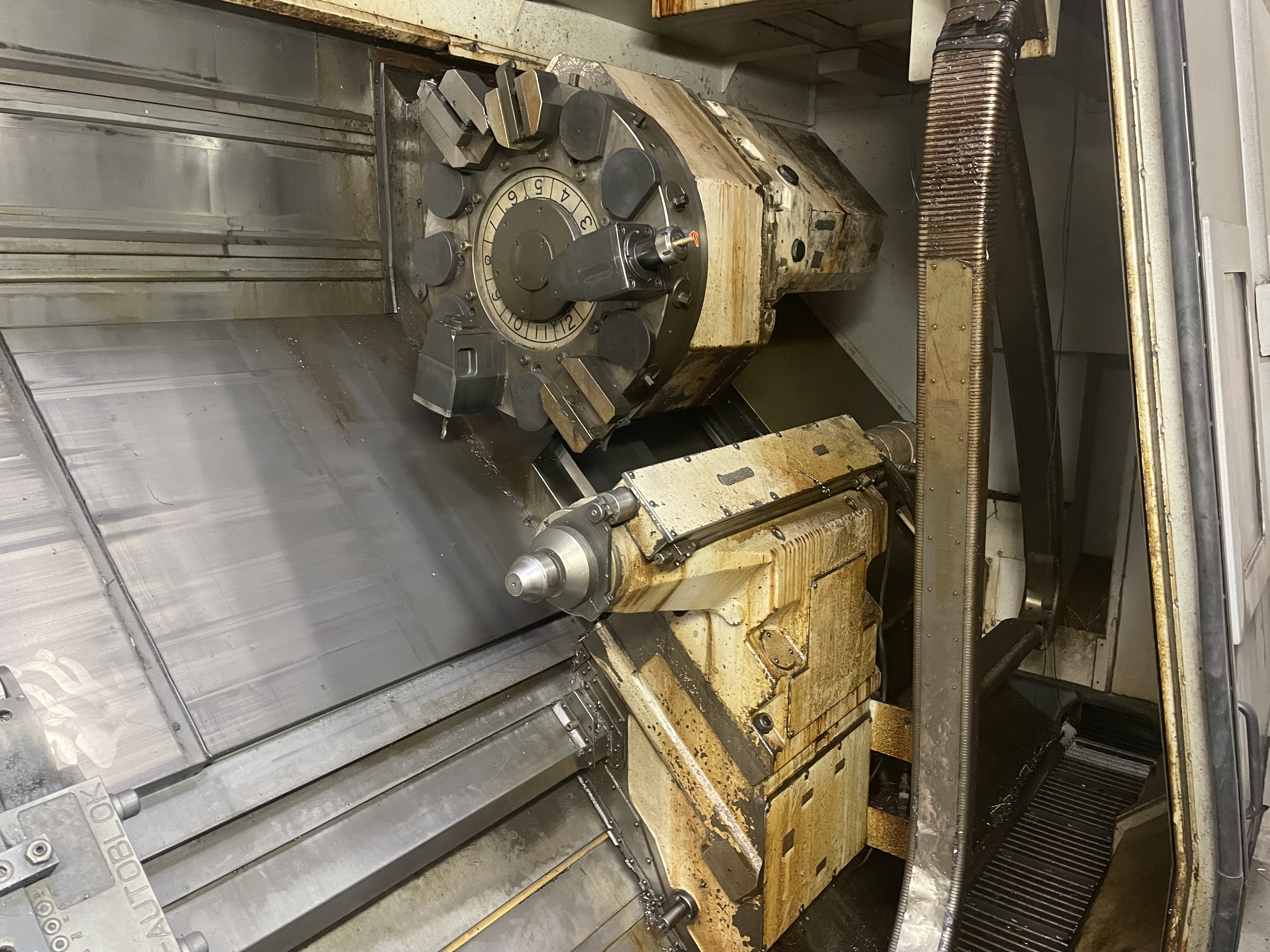

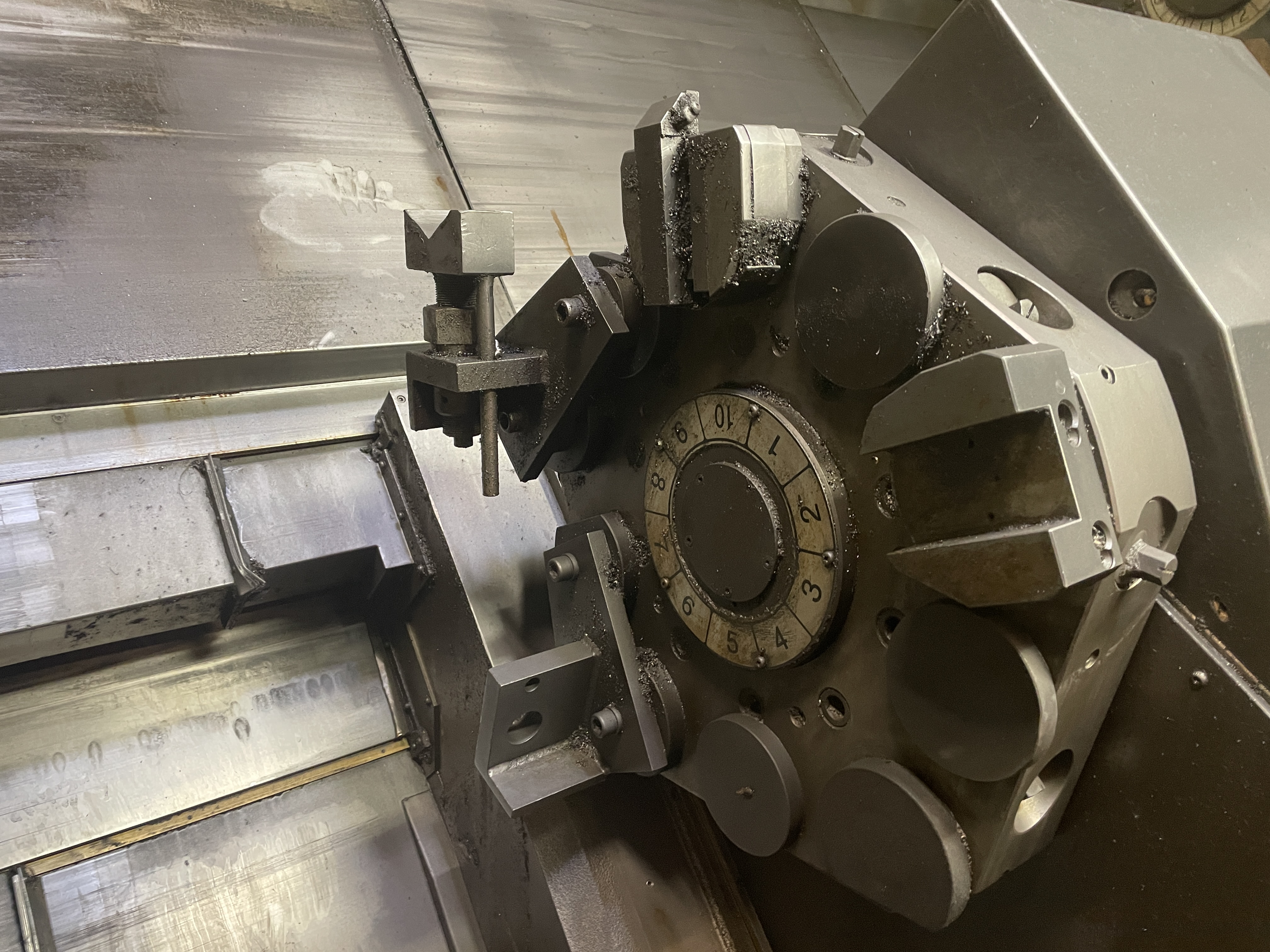

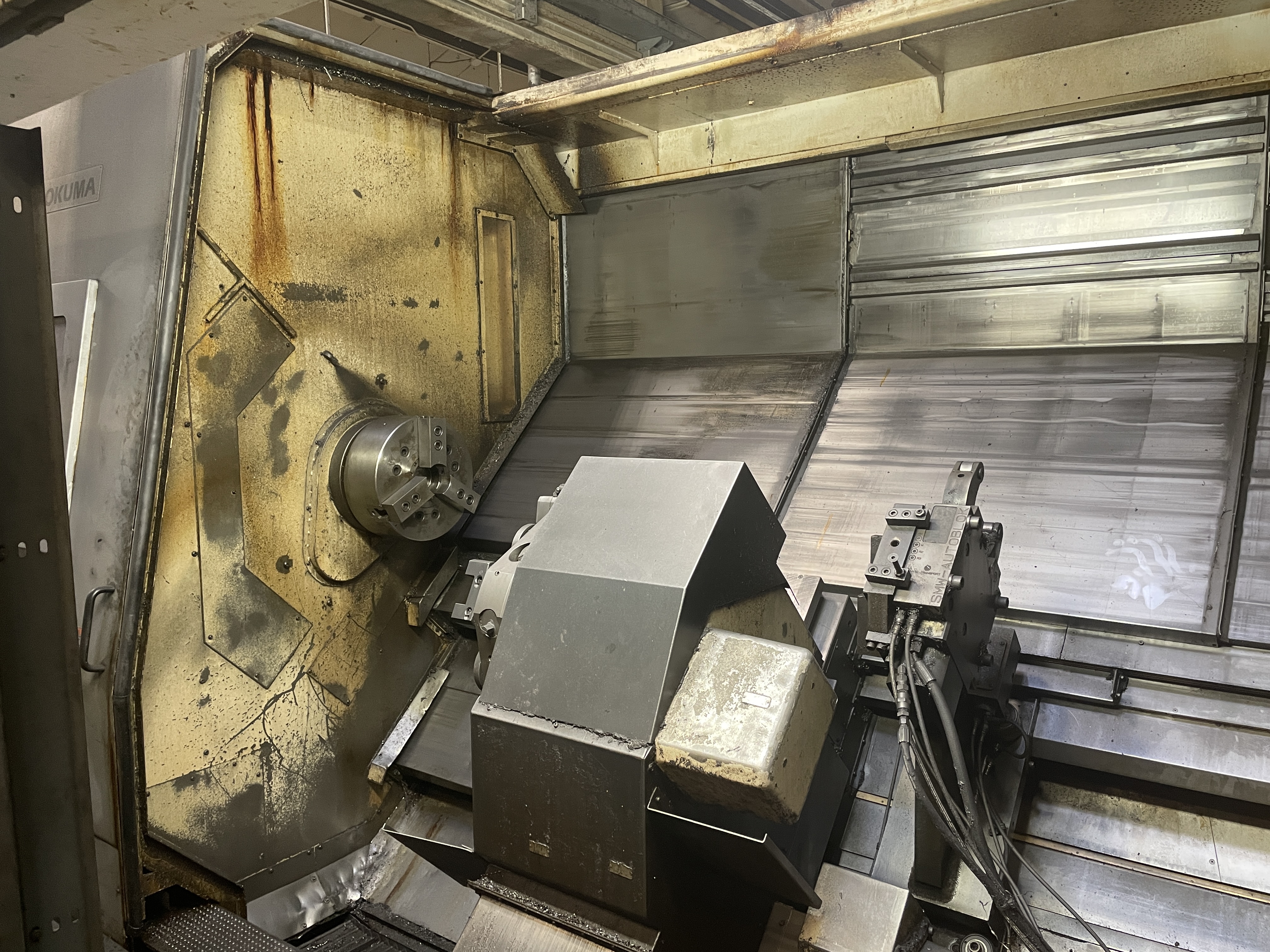

Dual Turret with 10 tool positions on Upper and 8 tool positions on Lower
Live Tooling on Lower Turret
220/480/3/60 Electrics

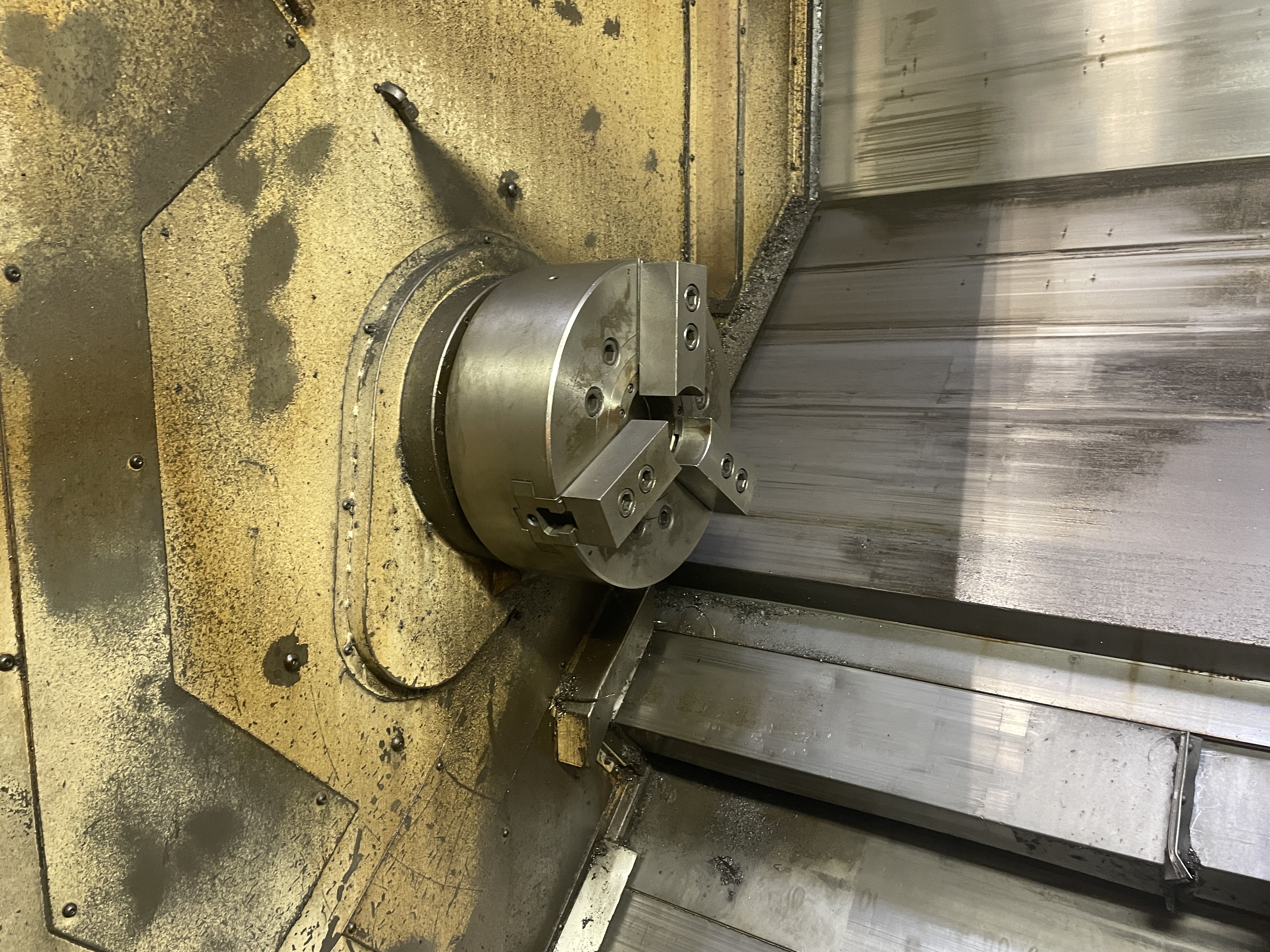

Rohm 27" 3-Jaw Quick Change Jaws
Air Mist Unit

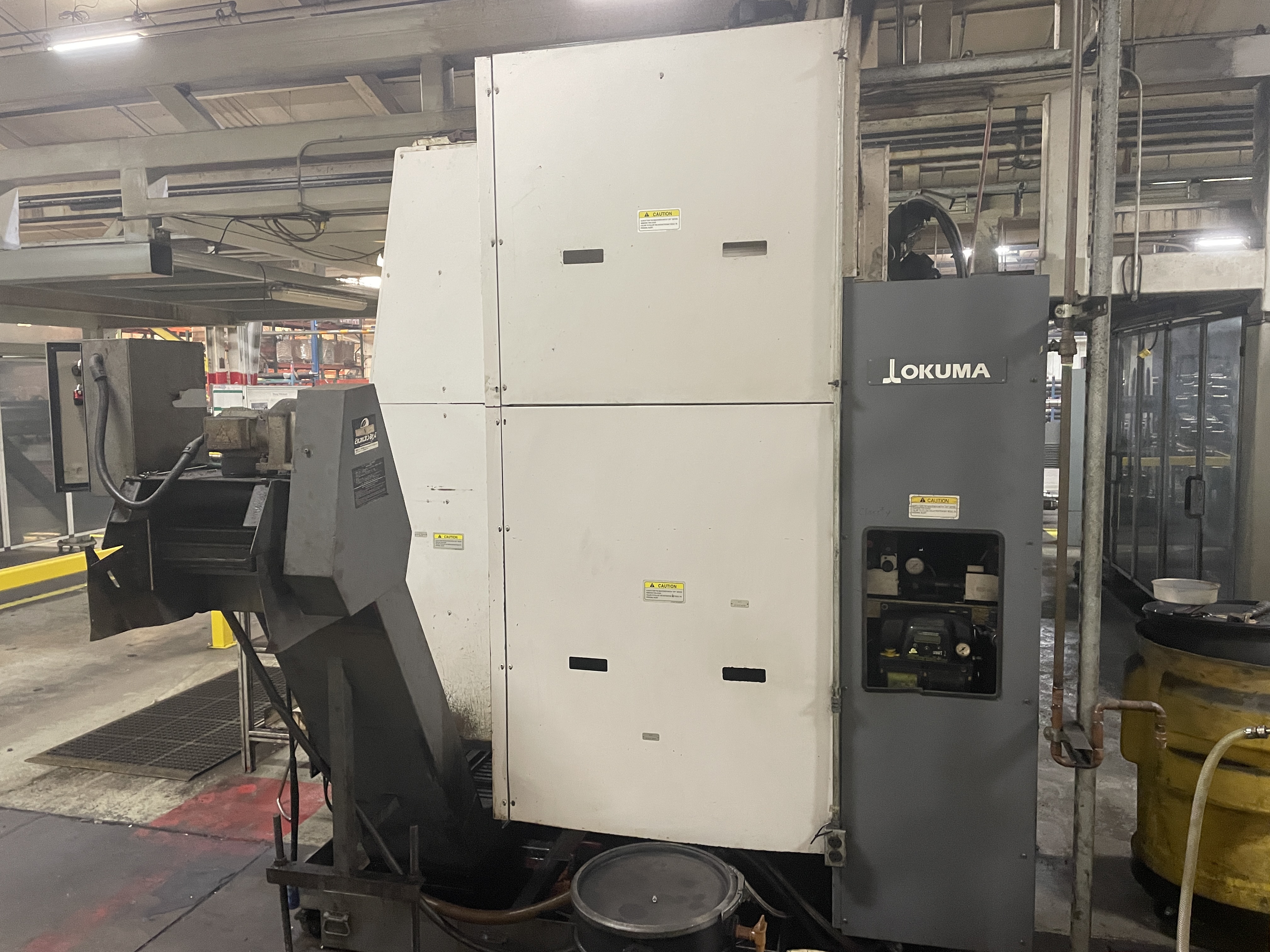

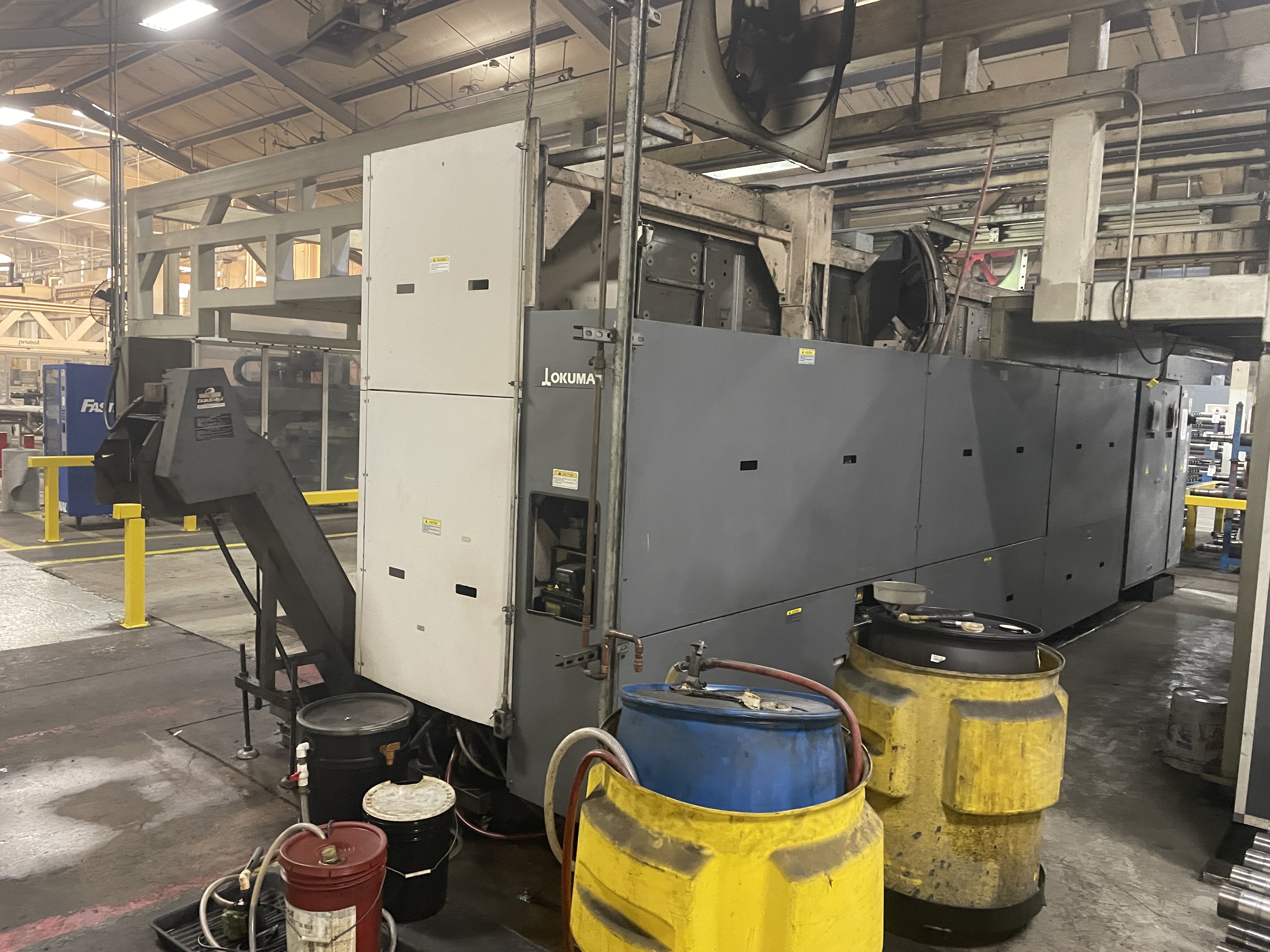

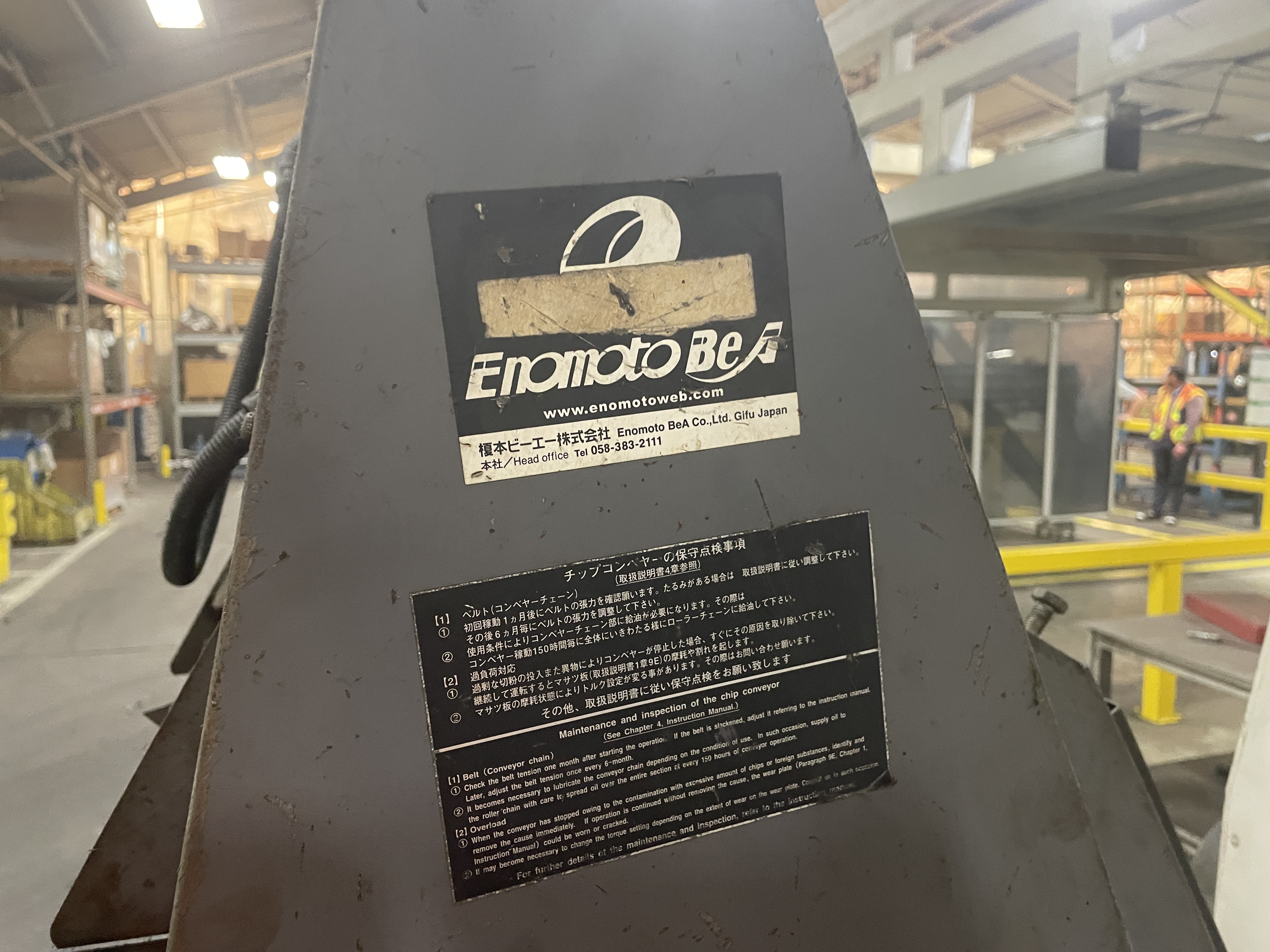

Side Discharge Chip Conveyor
Complete Tool Holders & Boriing Bars on Machine in Turret & Stock are Included.
Programming:
• Conventional 2- 4-Axis programming steps and language / IGF Conversational Programing.
• OSP CNC Control makes the conversions for the 4-Axis lower turret.
• Machining is executed in the order of “P-codes” (P1--Pn )
Catalogue Specifications. Information is believed to be correct but purchaser is advised to verify information by inspection.
