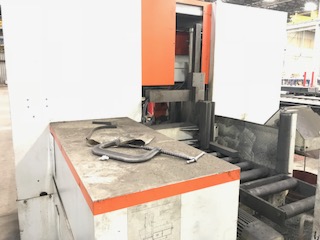

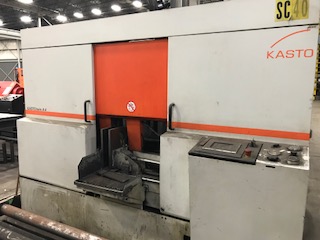

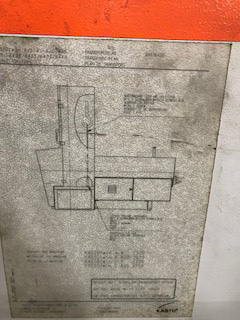

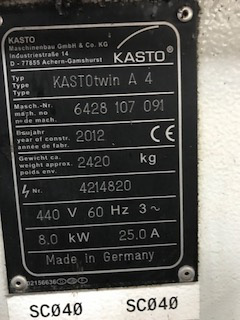

1000 Type KASTO twin A4 CNC Horizontal Band Saw

Specifications:

Technical Data
Cutting range:
Cutting range 90 round 15.75 in. - 400 mm
Cutting range 90 flat (W x H) 15.75 x 15.75 in. - 400 x 400 mm
Cutting range 90 square 15.75 x 15.74 in. - 400 x 400 mm
Clamping range 0 – 15.75 in. - 0 – 400 mm
Smallest cut-off length 0.24 in. - 6 mm
Smallest dimension to be cut 0.39 x 0.39 in. - 10 x 10 mm
Shortest length of residual piece, single cut 0.59 in. - 15 mm
Shortest length of residual piece, automatic operation 3.15 in. - 80 mm

Dimensions and weight:
Dimensions (L x W) 87.40 x 106.30 in. - 2220 x 2700 mm
Height 77.95 in. - 1980 mm
Material support height 27.56 in. - 700 mm
Total weight 5500 lbs. - 2500 Performance characteristics:

Performance Characteristics
Saw motor, frequency controlled 5.36 HP - 4 kW
Total power 9.38 HP - 7 kW
Material feed length, individual cut 29.53 in. - 750 mm
Multiple feed 393.66 in. - 9999 mm
Cutting speed, infinitely adjustable 65.60-260.80 ft/min - 20-110 m/min
Machine roller conveyor, length 63.39 in. - 1610 mm
Dimensions of rollers 2.36 in. - 60 mm
Dimensions of saw blade 224.41 x 1.61 x 0.05 in. - 5700 x 41 x 1.3 mm
Cutting feed: hydraulically adjustable
Material feed: ball screw spindle
Material clamping: hydraulic
Saw blade cleaning: by means of interchangeable wire brush, driven
proportionally to main drive by flexible shaft
Coolant: Coolant supply is through 2 nozzles and 1 coolant hose
volume of coolant tank approx. 26.40 gal (100 l),
pump capacity 13.20 gal/min (50 l/min).
Color: Light grey RAL 7035, Structural painting
Compressed-air supply: Approx. 87.60 PSI/5.28 gal/min (6 bar/20 l/min) required

Description of Machine
Fully Hydraulic High Performance Band Sawing Machine in heavy duty design for mass production cuts of easy to difficult materials, in solids, tubes and profiles. The standard precise linear guides (re-circulating ball units with grease lubricated guide carriage) guarantee maximum life. The standard BasicControl operator’s panel ensures optimum machine operation via touchscreen. After making the desired number of cuts, the machine shuts off automatically. By reducing set-up times to a minimum, maximum cutting performances are achieved in automatic mode. The precise drive via ball screw spindle in material feed guarantees an accurate material length positioning.Frequency controlled bevel gear driving, electronic supervision of the minimum number of revolutions, saw band breakage-, and clamping pressure control are standard. Of course, single cuts can be made as well. The KASTO-Universal Hydraulic ensures best results regarding cutting performance and blade life. The hydraulic side-shifting cylinder is standard equipment on the KASTOtwin 4 incl. Pos. 1510.

Machine column
Heavy-duty, distortion -free welded construction
Complete guarding
The new KASTOtwin A 4 is equipped with complete guarding. A high degree of safety and cleanliness is achieved with best accessibility at the material infeed and outfeed side.

Saw unit (saw frame)
Heavy-duty, distortion-free welded construction, modular design, with vibration optimised ribbing.
Using the latest design, technology and manufacturing methods, an extremely quiet and vibration-free operation is achieved. This means shorter cutting times and longer blade life.

Guidance of the saw unit
Linear guide with two guide carriages on one guide rail. The roller circulation unit consists of one solid pre-tensioned roller running system. The greased guide carriages guarantee maximum usable life.
Side guidance via mechanically preloaded carbide guides with quick release for fast band change. The band back is guided via rollers. Automatic adaptation of saw band guidance to material cross section.

Clearance Stroke System for Saw Blade
The saw blade is retracted in automatic cycle from the cutting surface of the cut-off piece during return stroke of the saw unit (removal of cutting surface on both sides). The wear at the tooth tips is reduced, longer blade life can be achieved.

Clearance Stroke System for Material
After a cut has been finished in automatic cycle the clamped material to be cut is positioned free of damage for the next cut; particularly recommended for materials with sensitive surface (standard when ordering Pos. 1510 - material feed length 59.06 in. - 1500 mm).

Adjustment of the Saw Unit’s Height
Fully automatic, according to the material’s height, via light scanner.

Saw band tensioning
Hydraulic, electrically monitored, with automatic pressure reduction at standstill of machine.
Automatic stop in case of band breakage.

Cleaning of saw band
Via chip removal brush, motor-driven, synchronised with cutting speed.

Material clamping - Machine clamping vise
The hydraulic horizontal double clamping vise enables an optimum work piece clamping on both sides of the saw band, also for cutting of short remnant pieces.

Material clamping - Feed vise
Hydraulic horizontal clamping vise with standard infinitely variable clamping pressure reduction. Integrated material-end feeler.

Automatic NC material feed
Via pendulum bearing feed vise . Safe material transport, even with forged work pieces. Material feed length 29.53 or 59.06 in. (750 mm or 1500 mm), standard multiple feed, short cut lengths up to 9.84 in. (250 mm) are achieved by an incremental feed. Material feed via ball screw spindle. Automatic Zero Positioning of the First Cut-off Piece.  After having entered the requested cut-off length and number of pieces and after having activated the control function “zero positioning”, the first cut-off piece is at once positioned fully automatically at the requested cut-off length and then cut.

KASTO Control for Sawing Machines
BasicControl
Hardware, Software
Industrial type terminal in robust system unit case
Display and operation at 6.4” colour touch screen
Infrared touch screen with scratchproof front pane made of laminated glass
Software and data keeping on exchangeable multimedia card.

Interfaces:
Network Ethernet TCP/IP as programming interface and connection of remote diagnosis
2 x USB
Input/output bus for connection of decentralized input and output modules
Integrated soft PLC, programmable in STEP 7
Visualization software for graphical operation, data entry and display
Decentralized input and output modules, each with 16 digital inputs and outputs, 2 analogue inputs and outputs and 1 input for counter/measuring system

Functions
Job memory for entry of 99 jobs. The job is defined by entry of Job number (1 to 99)
Cut-off length (min. cut-off length up to 9999.9 mm), entry of original dimension of cut-off length also with multiple feed
Desired piece number (1 to 9999)
Material form (square solids, thick-walled rectangular tube, thin-walled rectangular tube, round solids, thick-walled round tube, thin-walled round tube)
Cutting speed. The cutting speed can also be selected in a table of material qualities.
Tables of material qualities with allocation of the cutting speed for HSS saw blades (option: automatic selection of saw feed, see accessories)
Job entry during sawing process is possible.
The desired piece number can be corrected also in a job being processed.
Direct adaptation of cutting speed during operation by override function
Display of automatic correcting values for cutting speed, e.g. when using blade deviation control
Possibility to start either individual cut or automatic cut, with or without trim cut
Automatic processing of successive cutting jobs for one material quality
Tool data management of the saw blade being used, display of its running time in hours. Reset possible when saw blade has been exchanged.
Display of cutting time, of cycle time and of the expected end of the current cutting job
Working hour meter for “main switch ON” and “saw ON”. Additional working hour meter for “saw ON” with reset function.
Cut counter and additional cut counter with reset function
Online change-over of language between German, English and French (additional languages = option)
Change-over of measuring unit (entry and display) from mm/m to inch/feet

Operation
Easy to operate and clearly structured control panel, adapted to its use in workshops
Look and feel adapted to other KASTO control systems, extensive use of graphical operating symbols
All submenus for:
job entry
tool data
manual operation
visualization of process and
diagnosis are callable directly from the main menu.
Visualization of process making possible that all data required during operation can be displayed and corrected on one screen page
Manual operation of basic machine and its peripheral equipment via touch screen
Display of a message and error list with date and time in the diagnostic menu. Display of the latest error in the main menu. In case of an error, the display changes automatically to the main menu.
Diagnostic menu for direct display of status of the digital inputs/outputs and display of all analog inputs/outputs
Display of preset scheduled value, of actual value, of state and error as well as hand operation for positioning axes
Entry and modification of sawing machine parameters and system parameters at display
Password protection for diagnostic menus without general right to admission

Remote adjustment of the cutting speed
Central operation of the infinitely adjustable cutting speed 65.60 – 360.80 ft/min (20 -110 m/min) through switch +/- at the CompactControl.

SpeedControl (Electrical monitoring of low RPM),
Below the minimum RPM, the machine stops automatically.

Material In-feed
Via a continuous transport roller conveyor, integrated into the machine, spaces between rollers are covered, this ensures transportation of shorter remnants without a problem, with one fixed lateral guiding roller.

Material Out-feed
Via large dimensioned support table with coolant return tray, transfer height 27.56 in. (700 mm), container height max. 27.56 in. (700 mm).

Feed control with KASTO-Universal Hydraulic UH
Constant feed rate when cutting solids resp. constant cutting force when cutting profiles and tubes. Pre-selected adjustment on operator’s panel. The KASTO Universal Hydraulic system guarantees optimum adaptation of saw feed to each diameter to be cut as well as an automatic overload safety of the saw band. The saw band feed rate can be pre-selected infinitely variable and controlled and optimised via cutting pressure manometer. This innovative feed system guarantees short cutting times and high idle times as well as precise cut-offs.

Price $59,500 Less 10%
Catalogue Information, Personal inspection is recommended
