| Specifications: | |
| Column Diameter Arm Length Face of Column to Center of Spindle Radius Spindle to Base Area of Base Height of Base Vertical Travel of Spindle in Head Height over Head Height over Column Capacity Spindle Diameter Morse Taper in Spindle Traverse of Arm on Column Traverse of Head on Arm Feeds (18) Tap Thread Leads (5) Spindle Speeds (12) Motor Approx. Weight Approx. Dimensions |
26" 10' 15" - 120" 27" - 8'-1 3/4" 18 1/2" - 96" 130" x 57" 10" 24" 12'2" 11'9" 4" #6 54" 105" .004 - .250 6, 7, 8, 11.5, 18 10 - 1000 RPM 30 HP 56,690 Lbs 10’6” (L) x 11’9” (H) |
| Equipped with |

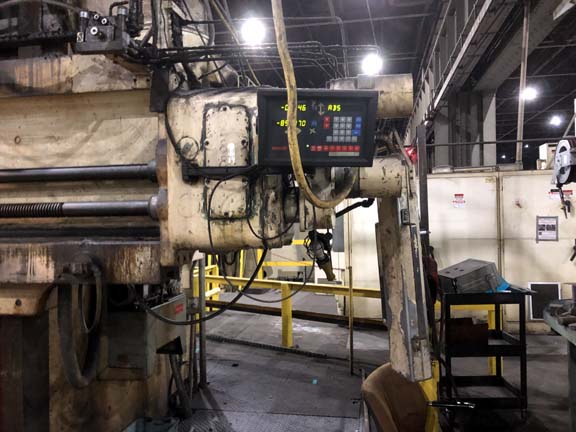

| Power Clamping of Head and Arm Digital Read Out |
| NOTE: An effort has been made to assure the above specifications are accurate, however, it is the sole responsibility of the buyer to confirm the actual model, capacity, attachments, accessories, extras and condition. We urge buyers to inspect all machinery and equipment prior to purchase |
 |
 |
 |
 |
