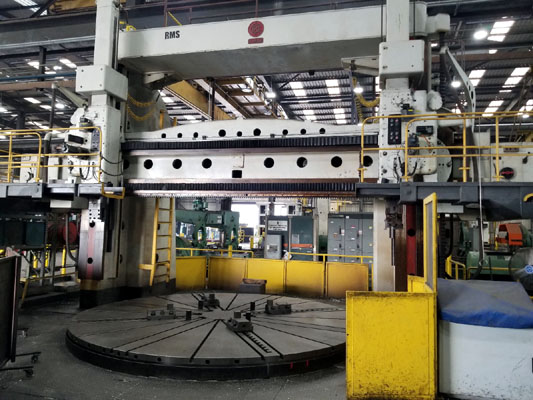

Cross
section of cutting tool: 2.250" x 2.250"

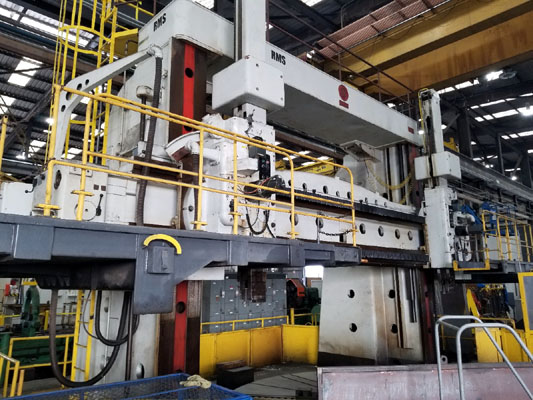

Number
of Cross rail Tool Heads: (2)
Number
of Side Heads: (1) Note: Side head ram is adapted for accommodation of clamping tools
Number
of chuck jaws: (4)
Equipment
for turning tapers & cutting threads using change gears with right-hand tool head on
cross-rail
Width
of T-Slots in table: 1.41"
Distance
between table center & column edge measured in inclined plane (approx): 104"
Distance
range between table center & tool holder of side head: 51" to 100"
Max
lowering of center of side head ram below table: 9.45"

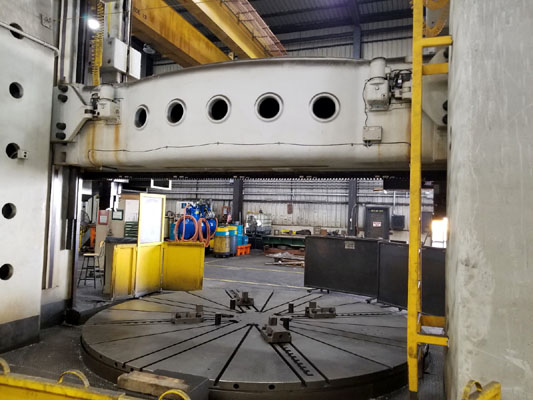

Diameter
range of work pieces that can be clamped by jaws: 28.55" to 179.7"
Rate
of Cross rail adjustment (approx): 24 inches/minute
Horizontal
movement of side head ram: 49.23"
Horizontal
movement of cross rail tool head measured from machine center to center of ram adjusted to
its extreme outer position (approx): 0.785" to 112.9"
Number
of feeds to cross rail tool head: (14)
Number
of feeds to side head: (14)
Vertical
and horizontal rapid feed motions to cross rail tool head: 28 IPM
Vertical
and horizontal rapid feed motions to side head: 28 IPM
Power-operated
swiveling of cross rail tool heads: 16 rpm
